Speed is still the most common factor in fatal road accidents, accounting for more than half of all road deaths each year.

# The physics of speeding cars

#### Expert reviewers

Emeritus Professor, University of New England

Visiting Fellow, Australian National University and adjunct professor at The University of New South Wales

## Essentials

• Speed continues to be one of the major factors contributing to accidents on Australia’s roads
• Even a small reduction in speed can greatly reduce the chance or severity of an accident
• Improvements in car design, combined with road education campaigns, have resulted in fewer deaths on Australian roads since the 1970s
• More than 4100 people are injured in speed-related incidents each year in Australia
• A car travelling at 65 km/h is twice as likely to be involved in a crash as a car travelling at 60 kilometres per hour

It may not seem like much, but driving even a few kilometres per hour above the speed limit greatly increases the risk of an accident.

Many of us cheat a little when driving. We figure that while the speed limit is 60 km/h the police won't pull us over if we sit on 65. So we happily let the speedo hover just above the speed limit, unaware that by so doing we are greatly magnifying our chances of crashing.

Using data from actual road crashes, scientists at the University of Adelaide estimated the relative risk of a car becoming involved in a casualty crash—a car crash in which people are killed or hospitalised—for cars travelling at or above 60 km/h. They found that the risk approximately doubled for every 5 km/h above 60 km/h. Thus, a car travelling at 65 km/h was twice as likely to be involved in a casualty crash as one travelling at 60 km/h. For a car travelling at 70 km/h the risk increased fourfold. For speeds below 60 km/h the likelihood of a fatal crash can be expected to be correspondingly reduced.

#### Stopping distance calculator

Small conditions can make a big difference to the time it takes you to stop your car, such as going a few km/hr slower or being alert on the road.

## The physics that drive you

#### Reaction time

One reason for this increased risk is reaction time—the time it takes between a person perceiving a danger and reacting to it. Consider this example. Two cars of equal weight and braking ability are travelling along the same road. Car 1, travelling at 65 km/h, is overtaking Car 2, which is travelling at 60 km/h. A child on a bicycle—let's call him Sam—emerges from a driveway just as the two cars are side-by-side. The drivers both see the child at the same time and both take 1.5 seconds before they fully apply the brakes. In those few moments, Car 1 travels 27.1 metres and Car 2 travels 25.0 metres.

The difference of 2.1 metres might seem relatively small, but combined with other factors it could mean the difference between life and death for Sam.

The figure of 1.5 seconds is the reaction time of average drivers. A driver who is distracted, for example listening to loud music, using a mobile phone or has drunk alcohol may take as long as 3 seconds to react.

#### Braking distance

The braking distance (the distance a car travels before stopping when the brakes are applied) depends on a number of variables. The slope or grade of the roadway is important—a car will stop more quickly if it is going uphill because gravity will help. The frictional resistance between the road and the car's tyres is also important—a car with new tyres on a dry road will be less likely to skid and will stop more quickly than one with worn tyres on a wet road. If slope and frictional resistance are equal, the factor that has most influence on braking distance is initial speed.

The formula used to calculate braking distance can be derived from a general equation of physics:

$$V_{f}^{2} = V_{0}^{2} - 2ad$$

where Vf is the final velocity, V0 is the initial velocity, a is the rate of deceleration and d is the distance travelled during deceleration. Since we know that Vf will be zero when the car has stopped, this equation can be re-written as:

$$d = V_{0}^{2} / 2a$$

From this we can see that braking distance is proportional to the square of the speed—which means that it increases considerably as speed increases. If we assume that a is 10 metres per second per second and assume that the road is flat and the braking systems of the two cars are equally effective, we can now calculate braking distance for cars 1 and 2 in our example. For car 1, d = 16.3 metres, while for Car 2, d = 13.9 metres.

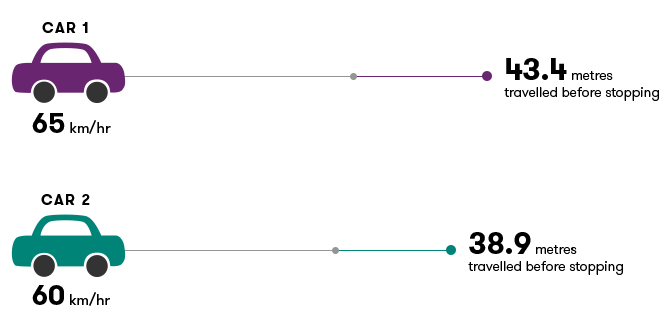

Adding reaction distance to braking distance, the stopping distance for Car 1 is 27.1 + 16.3 = 43.4 metres. For Car 2, stopping distance is 25 + 13.9 = 38.9 metres. Car 1 therefore takes 4.5 more metres to stop than Car 2, a 12 per cent increase.

We can now see why Car 1 is more likely than Car 2 to hit Sam. If Sam is 40 metres from the cars when the drivers see him, Car 2 will stop just in time. Car 1, though, will plough straight into him. By re-writing the first equation, we can calculate the speed at which the collision occurs:

$$V_{f} = \sqrt{V_{0}^{2} - 2ad} = 8.2\mbox{ }metres\mbox{ }per\mbox{ }second$$

(where d = 40 metres minus the reaction distance of 27.1 metres = 12.9 metres).

Thus, the impact occurs at about 30 kilometres/hour, probably fast enough to kill Sam. If the car's initial speed was 70 kilometres/hour, the impact velocity would be 45 kilometres/hour, more than fast enough to kill.

These calculations assume that the driver has an average reaction time. If the driver is distracted and has a longer than average reaction time, then he or she may hit Sam without having applied the brakes at all.

#### Impact on a pedestrian

Because the pedestrian, Sam, is so much lighter than the car, he has little effect upon its speed. The car, however, very rapidly increases Sam's speed from zero to the impact speed of the vehicle. The time taken for this is about the time it takes for the car to travel a distance equal to Sam's thickness—about 20 centimetres. The impact speed of Car 1 in our example is about 8.2 metres per second, so the impact lasts only about 0.024 seconds. Sam must be accelerated at a rate of about 320 metres per second per second during this short time. If Sam weighs 50 kilograms, then the force required is the product of his mass and his acceleration—about 16,000 newtons or about 1.6 tonnes weight.

Since the impact force on Sam depends on the impact speed divided by the impact time, it increases as the square of the impact speed. The impact speed, as we have seen above, increases rapidly as the travel speed increases, because the brakes are unable to bring the car to a stop in time.

Once a pedestrian has been hit by a car, the probability of serious injury or death depends strongly on the impact speed. Reducing the impact speed from 60 to 50 kilometres/hour almost halves the likelihood of death, but has relatively little influence on the likelihood of injury, which remains close to 100 per cent. Reducing the speed to 40 kilometres/hour, as in school zones, reduces the likelihood of death by a factor of 4 compared with 60 kilometres/hour, and of course the likelihood of an impact is also dramatically reduced.

Modern cars with low streamlined bonnets are more pedestrian-friendly than upright designs, such as those found in 4-wheel drive vehicles, since the pedestrian is thrown upwards towards the windscreen with a corresponding slowing of the impact. Cars with bull-bars are particularly unfriendly to pedestrians and to other vehicles, since they are designed to protect their own occupants with little regard for others.

#### Impact on a large object

If, instead of hitting a pedestrian, the car hits a tree, a brick wall, or some other heavy object, then the car’s energy of motion (kinetic energy) is all dissipated when the car body is bent and smashed. Since the kinetic energy (E) is given by

$$E = (1/2)\mbox{ }mass × speed^{2}$$

it increases as the square of the impact velocity. Driving a very heavy vehicle does not lessen the effect of the impact much because, although there is more metal to absorb the impact energy, there is also more energy to be absorbed.

#### Less control

At higher speeds cars become more difficult to manoeuvre, a fact partly explained by Newton's First Law of Motion. This states that if the net force acting on an object is zero then the object will either remain at rest or continue to move in a straight line with no change in speed. This resistance of an object to changing its state of rest or motion is called inertia GLOSSARY inertiathe resistance of any physical object to any change in its state of motion, including changes to its speed and direction. It is the tendency of objects to keep moving in a straight line at constant velocity. . It is inertia that will keep you moving when the car you are in comes to a sudden stop (unless you are restrained by a seatbelt).

To counteract inertia when navigating a bend in the road we need to apply a force—which we do by turning the steering wheel to change the direction of the tyres. This makes the car deviate from the straight line in which it is travelling and go round the bend. The force between the tyres and the road increases with increasing speed and with the sharpness of the turn (Force = mass × velocity squared, divided by the radius of the turn), increasing the likelihood of an uncontrolled skid. High speed also increases the potential for driver error caused by over- or under-steering (turning the steering wheel too far, thereby ‘cutting the corner’, or not far enough, so that the car hits the outside shoulder of the road).

#### Killer speed

All these factors show that the risk of being involved in a casualty crash increases dramatically with increasing speed. In the University of Adelaide study referred to earlier, this was certainly true in zones where the speed limit was 60 kilometres/hour: the risk doubled with every 5 kilometres/hour above the speed limit. A corresponding decrease is to be expected in zones with lower speed limits.

Source: RiAus on YouTube. View video details and transcript.

You decide on your speed, but physics decides whether you live or die. TAC Road Safety Commercial

## Conclusion

Is the risk worth it? In our hypothetical case, the driver of Car 2, travelling at the speed limit, would have had a nasty scare, but nothing more. The driver of Car 1, driving just 5 kilometres/hour above the limit, would not be so lucky: whether Sam had lived or died, the driver would face legal proceedings, a possible jail sentence, and a whole lifetime of guilt.

See our infographic on Australian road statistics.
